A bottle jack is a hydraulic jack which resembles a bottle in shape,having a cylindrical body and a neck, from which the hydraulicram emerges.. A quality bottle jackis an essential tool for every car,garage and workshop, From Compact 2T bottlejack to hevey duty 100T industrialbottle jacks, Cnjacks has the bottle youneed to get the job done. Actuallybottle jacks are versatile because theirhorizontal position makes it possibleto place them in tight spots and providesgood leverage. Bottle jacks have provenuseful in search and rescue missionsfollowing earthquake damage.
A hydraulic Bottle Jack is an excellent device for easily and quickly lifting aheavy load but it is NOT designed forlong term holding. If you plan on liftinga load and keeping it up for extended periods of time, you can use the hydraulic Bottle Jack to lift, but for the holding you MUST transfer the load to a jackstand or other devices.
Operates in vertical or horizontalpositions.Fabricated from hard cast steel with heat treated stress areas &extensionscrew. Machined and polished cylinders with die-cut threads. Durablebakedenamel rust free finish

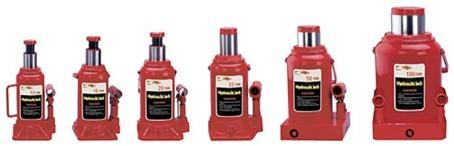

StandardHydraulic Bottle Jacks
Model | Capacity | Min.H. | Lifting H. | Adjust H. | Max. H. | N.W. | Package | CTN Size | QTY/CTN | G.W. | 20' Container |
BTS0202 | 2T | 158mm | 90mm | 60mm | 308mm | 2.3kgs | Color box | 52x25.5x19cm | 10pcs | 24kgs | 7800pcs |
BTS0202 | 2T | 158mm | 90mm | 60mm | 308mm | 2.3kgs | Blow case | 34.5x34.5x25.5cm | 6pcs | 16kgs | 4800pcs |
BTS0402 | 4T | 195mm | 125mm | 60mm | 380mm | 3.2kgs | Color box | 46x26.5x22.5cm | 8pcs | 28kgs | 5400pcs |
BTS0402 | 4T | 195mm | 125mm | 60mm | 380mm | 3.2kgs | Blow case | 38.5x35x29.5cm | 6pcs | 23kgs | 4200pcs |
BTS0602 | 6T | 197mm | 125mm | 60mm | 382mm | 4.2kgs | Color box | 37x27.5x22.5cm | 6pcs | 28kgs | 4200pcs |
BTS0602 | 6T | 197mm | 125mm | 60mm | 382mm | 4.2kgs | blow box | 39.5x26.5x30.5cm | 4pcs | 20kgs | 3500pcs |
BTS0802 | 8T | 205mm | 125mm | 60mm | 390mm | 5.1kgs | Color box | 29.5x27.5x22.5cm | 4pcs | 23kgs | 3340pcs |
BTS0802 | 8T | 205mm | 125mm | 60mm | 390mm | 5.1kgs | Blow case | 39.5x26.5x30.5 | 4pcs | 24kgs | 3500pcs |
BTS1002 | 10T | 205mm | 125mm | 60mm | 390mm | 5.8kgs | Color box | 30.5x29.5x24cm | 4pcs | 25kgs | 3000pcs |
BTS1002 | 10T | 205mm | 125mm | 60mm | 390mm | 5.8kgs | Blow case | 31.5x22.5x32.5cm | 2pcs | 14kgs | 1280pcs |
BTS1202 | 12T | 215mm | 125mm | 60mm | 400mm | 7.0kgs | Color box | 30.5x16.5x24cm | 2pcs | 16kgs | 2500pcs |
BTS1202 | 12T | 215mm | 125mm | 60mm | 400mm | 7.0kgs | Blow case | 31.5x22.5x32.5cm | 2pcs | 16kgs | 1280pcs |
BTS1602 | 16T | 225mm | 140mm | 60mm | 425mm | 8.0kgs | Color box | 31.5x17x24.5cm | 2pcs | 17kgs | 2250pcs |
BTS2002 | 20T | 244mm | 145mm | 60mm | 449mm | 11kgs | Color box | 34.5x19.5x27cm | 2pcs | 24kgs | 1500pcs |
BTS3202A | 32T | 285mm | 180mm | / | 465mm | 13.5kgs | Color box | 37.5x19x31cm | 2pcs | 30kgs | 1240pcs |
BTS3202 | 32T | 285mm | 180mm | / | 465mm | 15.0kgs | Color box | 37.5x19x31cm | 2pcs | 36kgs | 1060pcs |
BTS5002 | 50T | 300mm | 180mm | / | 480mm | 32.0kgs | Carton | 24x22x32cm | 1pc | 34kgs | 540pcs |
BTS10002 | 100T | 340mm | 180mm | / | 520mm | 75.0kgs | Plywood case | 32.5x26.5x36cm | 1pc | 77kgs | 240pcs |
