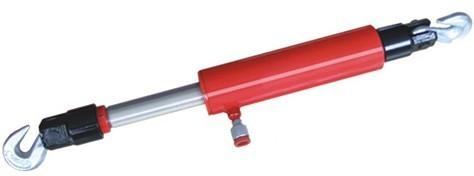

Pull-Back Hydraulic Ram 10T

A Pull-Back Ram comprises a hydraulic cylinder for actuating a hollow ram. A ram extension consisting of the ram and a ram rod extending into the ram in a thread engagement which is slidably fitted in the cylinder. The cylinder has a lower throttle portion in which radial openings for discharging an operation oil are formed in an axially spaced arrangement.


Pull-Back Rams are Great for every purpose, including pulling, pushing and auto body repairs with hand pump


Cnjacks pull-back ram is made in all heavy steel construction, and is ideal to be used with porta power pump for pulling, bending, and straightening for body work on trucks, tractors, and heavy equipments etc.

Model Nr:Pull-Back Hydraulic Ram 10T_PBR10000
Capacity: 10,000kgs
Max Length: 715mm
Stroke: 130mm
N.W./G.W.: 32/34kgs
Package Size: 69x34x22cm
PCS/CTN: 4pcs
20 Container: 2350pcs

Model	Capacity	Max Length	Stroke	N.W.	G.W.	Package Size	PCS/CTN	20' Container
PBR02000	2000kgs	575mm	120mm	18kgs	19kgs	60x29x23cm	6pcs	6300pcs
PBR05000	5000kgs	665mm	130mm	33kgs	35kgs	69x29x23cm	6pcs	3400pcs
PBR10000	10,000kgs	715mm	130mm	32kgs	34kgs	69x34x22cm	4pcs	2350pcs
PBR20000	20,000kgs	980mm	200mm	20kgs	21kgs	92x25x11cm	1pc	950pcs
