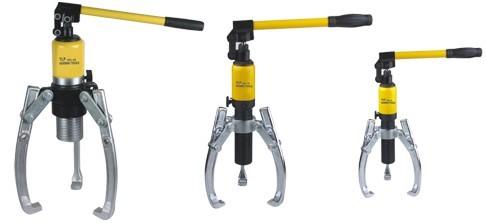

Integral Hydraulic Gear Puller

Hydraulic gear puller can not only save time but also can ensure highest efficiency.  It can be widely applicable in car maintenance factories and mechanical factories.  It can be sued for any machines which have bearing, belt pulley, motor and gear.  It is applied to the pulling operation of gear, belt pulley, bearing or other wheels in car maintenance factories, mechanical factories and repair workshops.  Detached wheel pulling tool can be connected to hydraulic manual pump  Its portable structure is easy for carrying and operation.  Using hydraulic gear puller is convenient for operating.  Operators can exchange two jaws and three jaws as required in the working spot immediately  The puller can be touched the working center quickly after rotary according to the distance between the puller and piston center.  Pump can be chosed freely.  The 3-jaw types can be adjusted from high to low point.
Feature:  The integral pullers are compact, lightweight. Easy to carry and operate.  It's least restricted by place and is extensively used by factories, repair stations etc.  Both 2-Jaw and 3-Jaw styles are available.

Specifications:
Model
Rated Output (T)
Max. Spread (mm)
Max. Stroke (mm)
Weight (kg)
CTN Size (mm)
IH05
5
200
50
7.5
(1/4) 440x380x320
IH10
10
250
50
11
(1/2) 440x210x360
IH20
20
350
60
19
430x400x140
IH30
30
400
60
25
480x200x180
IH50
50
500
60
45
520x250x220
