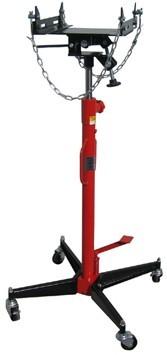

Hydraulic Telescoping Jack
For handling and positioning of transmissions efficiently, a transmission jack is essential. Cnjacks high-lift transmission jack, low-profile transmission jacks, 2-staged transmission jacks, floor transmission jacks, telescoping jacks, air/hydraulic transmission jacks, telescoping jack are strong steel constructed with ball bearing easy-roll casters, feature adjustable tilted saddles for easy positions, varied lifting capacities and heights, completed with hand or foot operated pump and release valve for easy operation.
Model Nr.:Hydraulic Telescoping Jack_TJ02051a
Capacity: 0.5T
Min. H.: 1200mm
Max. H.: 2000mm
N.W.:/G.W.: 9kgs/9.5kgs
29kgs/31kgs
Package Size: 45cm x 24cm x 15cm
105cm x 25cm x 27cm
20' Container: 314pcs
Model Nr. | Capacity | Stroke | Lifting Range | N.W. | G.W. | Packing Size | 20' Container |
High Transmission Jack | |||||||
TJ02101 | 1.0T | 1ST Stage: 465mm; 2nd Stage: 465mm | 880-1810mm | 82kgs | 88kgs | 55x36x85cm | 120pcs |
TJ02051 | 0.5T | / | 1100-1900mm | 30kgs | 32kgs | 105x25x27cm | 392pcs |
TJ02051A | 0.5T | / | 1200-2000mm | 9kgs;29kgs | 9.5kgs;31kgs | 45x24x15cm;105x25x27cm | 314pcs |
TJ02051C | 0.5T | / | 1100-1900mm | 8kgs;27kgs | 8.5kgs;28kgs | 45x24x15cm;105x25x27cm | 300pcs |
TJ02052 | 0.5T | 1ST Stage: 465mm;2nd Stage:465mm | 870-1800mm | 80kgs | 86kgs | 55x36x85cm | 120pcs |
TJ02052A | 0.5T | 1ST Stage: 465mm;2nd Stage:465mm | 870-1800mm | 80kgs | 86kgs | 55x36x85cm | 120pcs |
TJ02052Q | 0.5T | Remark: air pressure 0.8Mpa | 870-1800mm | 84kgs | 90kgs | 55x36x85cm | 120pcs |
TJ02053 | 0.5T | 1ST Stage: 450mm;2nd Stage: 450mm | 850-1750mm | 60kgs | 68kgs | 48x27x73cm | 276pcs |
TJ02054 | 0.5T | / | 1290-1780mm | 33kgs | 35kgs | 87cm x 35cm x 20cm | 462pcs |
TJ02061 | 0.6T | / | 1040-1760mm | 32kgs | 34kgs | 105cm x 25cm x 27cm | 376pcs |
TJ02061A | 0.6T | / | 1200-1920mm | 13kgs;30kgs | 14kgs;32kgs | 45x26x16cm; 105x25x27cm |
