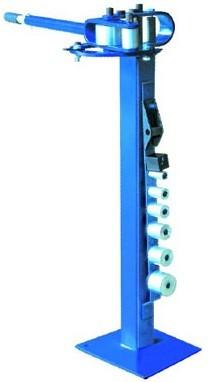

Floor Compact Bender

Floor Compact Bender
Controlled bending of metal bar and rod up to 180Â�� to create all manner of shapes, components and structures.
This floor mounted machine easily achieves the precise radius required by selecting from the different sized dies supplied
1.Model:FCB04002
2.Mild Steel Capacity(inch):5/16"*1 1/4" or 1/4"*2"
3.Right Angle Bending Capacity:0-200 degree


Model Nr.	Floor Compact Bender-FCB04002
Height	38"
Mild Steel Capacity(inch)	5/16*1 1/4 or 1/4*2
Right Angle Bending Capacity	3/16*1-1/4 or 1/4*1-1/4
Center Pin Capacity	1/4 Thick(Use 1die for greater)
Solid Rod Capacity	1/2(Use 3die)
Die Sizes	1,1 1/4,1 1/2,1 3/4,2,2 1/3
N.W/G.W(kg)	24/26
Right Angle Bending Capacity	0-200 degree
Packing Dimension(mm)	920*280*270


The new Compact Bender is designed to make bends is flat,square or round solid metal.It may be used to creat sign letters,anchor bolts,U bolts,pipr clamps,handles,and more.It is light weight enough to be used as a portable bender on trucks or trailers.
