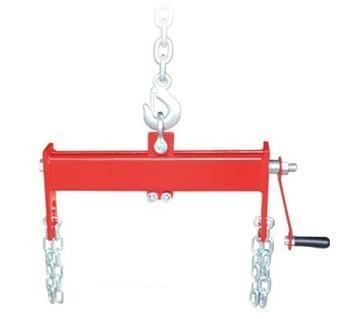

Auto Engine Leveler
Easy engine handling and positioning, Tilting forward and backward for easy bolt alignment, Cnjacks load levelers (also called as engine levelers and engine load levelers) are designed to hook to a crane or hoist to remove or install engines, transmissions or other bulky components. The horizontal tilt can be adjusted to compensate for off-center loads or adjusted to a certain angle for a component being positioned.
Model Nr.: Auto Engine Leveler_LL4000
Capacity: 4000lbs
Operating Range: 385mm
N.W.: 6.5kgs
G.W.: 7.0kgs
Package Size: 62x25x7cm
20' Container: 2680pcs
Model | Capacity | Operating Range | N.W. | G.W. | Package Size | 20' Container |
LL0750 | 750lbs | 415mm | 4.7kgs | 5.7kgs | 68x24x9cm | 1950pcs |
LL1000 | 1000lbs | 430mm | 5.3kgs | 5.8kgs | 73x24x10cm | 1580pcs |
LL2000 | 2000lbs | 315mm | 5.8kgs | 6.5kgs | 49x20x9cm | 2500pcs |
LL4000 | 4000lbs | 385mm | 6.5kgs | 7.0kgs | 62x25x7cm | 2680pcs |
